One Standard to Rule Them All
If you've ever mounted a weapon light, laser, optic, or foregrip on a firearm, you've almost certainly used a Picatinny rail — whether you knew it by name or not. The Picatinny rail is the universal mounting standard that transformed how accessories attach to firearms, enabling a modular ecosystem where a single accessory can work across dozens of different platforms without modification.
Understanding the Picatinny rail — what it is, how it works, where it came from, and how it differs from similar systems — is foundational knowledge for anyone who takes firearms accessories seriously. This guide covers everything from the rail's military origins to its precise dimensional specifications to the practical considerations that matter when mounting accessories on your pistol, rifle, or shotgun.

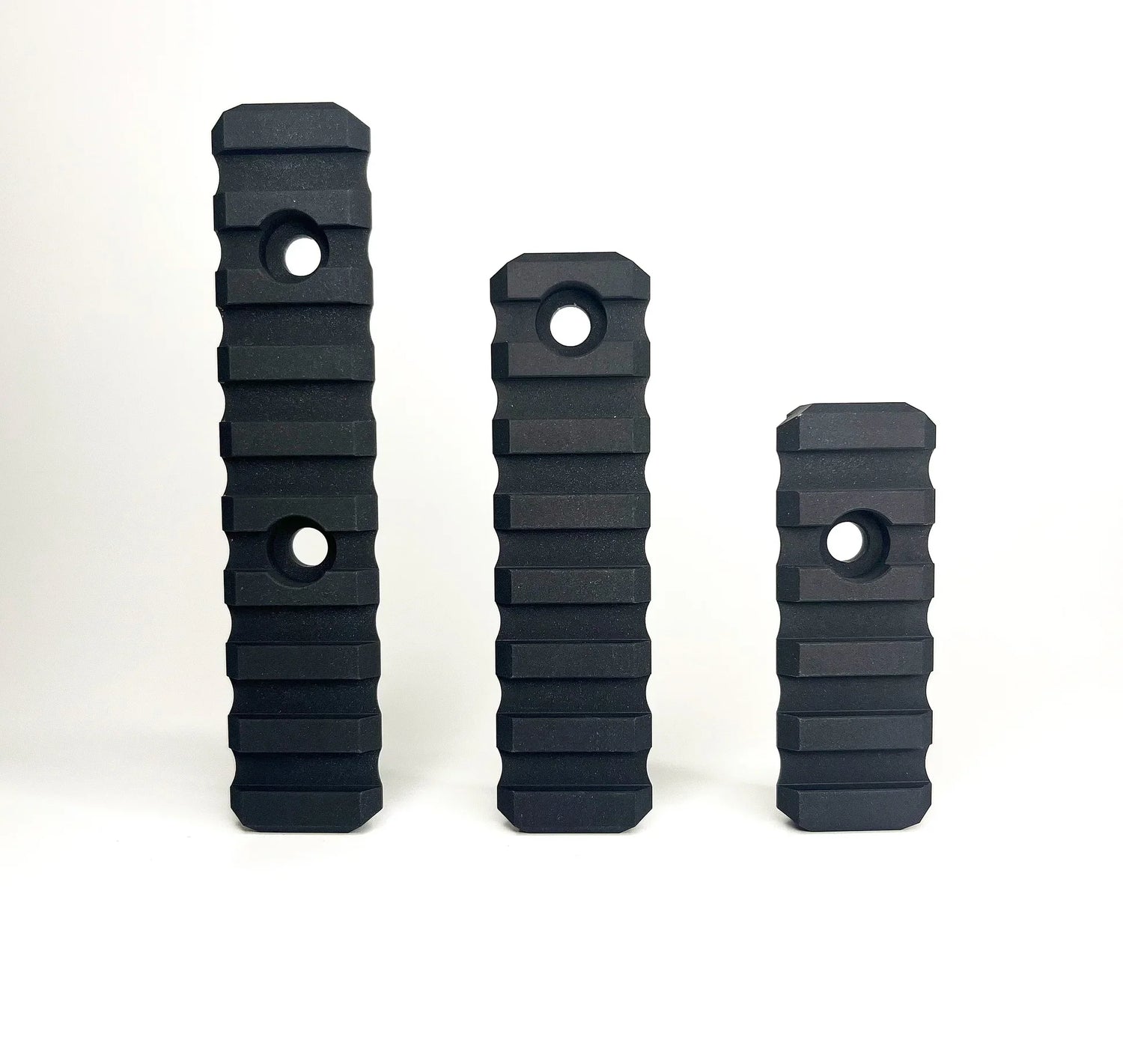

What Is a Picatinny Rail?
The Basic Definition
A Picatinny rail — formally designated MIL-STD-1913, and sometimes called a "STANAG 2324 rail" or simply a "tactical rail" — is a standardized mounting bracket system used on firearms to attach accessories. The rail consists of a series of transverse slots cut into a raised platform, with precisely dimensioned teeth (called "ribs" or "lands") between the slots. Accessories mount by clamping onto these teeth, with a cross-bolt or lever mechanism locking them in place within the slots.
The defining characteristic of the Picatinny rail is its standardization: every Picatinny rail, regardless of manufacturer or firearm platform, has the same slot dimensions, the same tooth dimensions, and the same spacing. This standardization is what makes the system universal — any Picatinny-compatible accessory will fit any Picatinny rail.
The MIL-STD-1913 Designation
The "1913" in MIL-STD-1913 refers to the military standard number, not a year. The standard was developed at Picatinny Arsenal in New Jersey — the U.S. Army's primary weapons research and manufacturing facility — which is where the rail gets its common name. The formal military designation is MIL-STD-1913, but "Picatinny rail" is the term used universally in both military and civilian contexts.
The NATO equivalent designation is STANAG 2324, which adopted the same dimensional specifications to ensure interoperability between allied forces. A rail marked as STANAG 2324 compliant is dimensionally identical to a MIL-STD-1913 Picatinny rail.
The History: From Weaver to Picatinny
The Weaver Rail: The Predecessor
To understand why the Picatinny rail was developed, you need to understand its predecessor: the Weaver rail. The Weaver rail, developed by W.R. Weaver Company in the 1930s, was the first widely adopted scope mounting system for rifles. It used a similar slot-and-clamp concept but with less precise dimensional specifications — Weaver rails from different manufacturers weren't always perfectly interchangeable, and the system wasn't designed for the rigors of military use.
The Weaver rail served civilian shooters well for decades, but as the U.S. military began equipping rifles with optics, lights, and other accessories in the 1980s and 1990s, its limitations became apparent. Different accessories from different manufacturers didn't always fit reliably. Accessories could shift under recoil. There was no true universal standard.
The Development of MIL-STD-1913
The Picatinny rail was developed in the early 1990s at Picatinny Arsenal as a response to these limitations. The goal was a mounting standard that was:
- Precisely dimensioned: Tight tolerances that ensured true interoperability between accessories and rails from any manufacturer
- Mechanically robust: Capable of withstanding the recoil forces of military weapons without shifting or loosening
- Universally adoptable: Simple enough to be manufactured by any facility and adopted across all military platforms
- Accessory-agnostic: Designed to accept any accessory that met the standard, without platform-specific modifications
The standard was formally adopted as MIL-STD-1913 in 1995 and quickly became the dominant mounting system for U.S. military weapons. The M16/M4 rifle family, the M249 SAW, the M240 machine gun, and virtually every other U.S. military small arm was eventually equipped with Picatinny rails. NATO adoption followed, and the civilian market embraced the standard as military-specification accessories became available to civilian shooters.
The Dimensional Specifications: What Makes a Rail "Picatinny"
Precise Measurements That Define the Standard
The Picatinny rail's universality depends entirely on its precise dimensional specifications. These measurements are what distinguish a true MIL-STD-1913 Picatinny rail from lookalike systems that may appear similar but aren't fully compatible:
| Dimension | Specification |
|---|---|
| Rail width (top surface) | 0.833 inches (21.2 mm) |
| Slot width | 0.206 inches (5.23 mm) |
| Slot depth | 0.060 inches (1.52 mm) |
| Slot spacing (center to center) | 0.394 inches (10.0 mm) |
| Tooth (rib) width | 0.188 inches (4.78 mm) |
| Rail height above bore axis | Varies by platform |
The slot spacing of 0.394 inches (approximately 10mm) is the critical dimension for accessory compatibility. Accessories mount by inserting a cross-bolt or T-nut into a slot, and the spacing determines where accessories can be positioned along the rail. This spacing is what allows accessories to be repositioned along the rail's length — you can move a light forward or backward in 0.394-inch increments to find the optimal position.
How Accessories Mount
Picatinny-compatible accessories use one of several mounting mechanisms, all of which engage the rail's slots:
Cross-bolt clamps: A bolt passes through the accessory's mounting foot and into a slot in the rail. Tightening the bolt clamps the accessory's foot against the rail's teeth. Simple, secure, and tool-required for removal. Common on optics and foregrips.
Lever-lock clamps: A cam-operated lever clamps the accessory onto the rail without tools. Allows rapid attachment and removal. Common on weapon lights and lasers where quick deployment matters. Slightly less secure than cross-bolt under extreme recoil but adequate for most applications.
Thumb-screw clamps: Similar to cross-bolt but tightened by hand without tools. Convenient but less secure than cross-bolt under heavy recoil. Common on lighter accessories.
Integrated mounts: Some accessories have mounting feet machined directly into their bodies rather than separate clamp mechanisms. These are typically more secure and lower-profile but less adjustable.
Picatinny vs. Weaver: Understanding the Difference
Why They're Often Confused
Picatinny and Weaver rails look nearly identical to the untrained eye — both use a slot-and-tooth system on a raised platform. The confusion is compounded by the fact that many Picatinny-compatible accessories will physically fit on Weaver rails and vice versa, at least loosely. This partial compatibility leads many shooters to treat the two systems as interchangeable, which they are not.
The Key Dimensional Differences
| Dimension | Picatinny (MIL-STD-1913) | Weaver |
|---|---|---|
| Slot width | 0.206 inches (5.23 mm) | 0.180 inches (4.57 mm) |
| Slot spacing | 0.394 inches (10.0 mm) | Varies (not standardized) |
| Rail width | 0.833 inches (21.2 mm) | ~0.770 inches (19.6 mm) |
| Standardization | Precise military standard | Approximate industry convention |
The critical differences: Picatinny slots are slightly wider (0.206" vs 0.180") and the slot spacing is standardized (0.394" center-to-center) where Weaver spacing varies by manufacturer. These differences mean:
- A Picatinny-spec accessory may be loose on a Weaver rail because the slots are narrower
- A Weaver-spec accessory may not fit in a Picatinny slot because the cross-bolt is too wide
- Even when accessories physically fit across systems, they may not lock securely
- Accessories designed for Picatinny rails should only be used on Picatinny rails for reliable retention
The Practical Rule
If your firearm has a Picatinny rail (MIL-STD-1913), use Picatinny-compatible accessories. If it has a Weaver rail, use Weaver-compatible accessories. Many modern accessories are designed to work with both systems, but verify compatibility before trusting a critical accessory like a weapon light to a mismatched rail system.
Where Picatinny Rails Appear on Firearms
Rifles and Carbines
The Picatinny rail's most common application is on rifles and carbines. Modern tactical rifles typically feature rails in four positions corresponding to the clock positions around the handguard:
- 12 o'clock (top rail): The primary optic mounting position. Runs along the top of the receiver and handguard, providing a continuous mounting surface for scopes, red dots, and magnifiers.
- 3 o'clock (right side rail): Typically used for backup iron sights, laser aiming devices, or accessories that need to be accessible from the right side.
- 6 o'clock (bottom rail): The primary position for foregrips, bipods, and weapon lights on rifles.
- 9 o'clock (left side rail): Used for laser/light combinations, pressure switches, and accessories accessible from the left side.
Free-float handguards on modern AR-15 and M4-pattern rifles often feature continuous Picatinny rails on all four sides, or M-LOK/KeyMod slots with Picatinny rail sections that can be added where needed.
Pistols
On pistols, the Picatinny rail (or the closely related accessory rail) appears on the dust cover — the frame section below the barrel in front of the trigger guard. This position allows weapon lights and laser aiming devices to be mounted forward of the trigger guard where they don't interfere with the grip or trigger operation.
Most modern full-size and compact service pistols include an accessory rail as standard equipment: the Glock 17/19 (Gen 3 and later), SIG Sauer P320, Smith & Wesson M&P series, Springfield Armory XD/Hellcat Pro, Beretta APX, and many others. Subcompact and micro-compact pistols often omit the rail to reduce size and weight — the Glock 43/43X, for example, has no rail in its standard configuration.
Pistol rails are typically shorter than rifle rails — often only 3–5 slots — which limits the accessories that can be mounted but is sufficient for a weapon light or laser/light combination.
Shotguns
Tactical shotguns increasingly feature Picatinny rails on the receiver top for optic mounting and on the forend for light and laser attachment. The rail positions on shotguns follow the same logic as rifles: top rail for optics, bottom/side rails for lights and lasers.
Accessory Categories: What Mounts on a Picatinny Rail
Weapon Lights
Weapon lights are the most common Picatinny rail accessory for pistols. A dedicated weapon light provides hands-free illumination that moves with the pistol — wherever the muzzle points, the light illuminates. This is the fundamental advantage over handheld flashlights: the light and the pistol are always aligned, allowing the shooter to maintain a two-handed grip while illuminating a target.
Modern weapon lights range from compact pistol lights producing 500–1,000+ lumens to full-size rifle lights producing 1,000–2,000+ lumens. Key specifications to evaluate: output (lumens), beam pattern (flood vs. throw), runtime, activation method (pressure switch, tail cap, grip switch), and mounting system (Picatinny vs. proprietary).
WARRIORLAND's Crossbow MA1 800-lumen rail-mounted weapon light mounts directly to any standard Picatinny or accessory rail, providing 800 lumens of white LED output with an integrated green laser for target acquisition. Magnetic USB recharging and a screen-displayed battery status indicator make it a practical choice for duty and defensive carry. The MA1's universal rail mount fits the full range of pistols with standard accessory rails.
Laser Aiming Devices
Laser aiming devices project a visible or infrared beam onto the target, allowing the shooter to aim without aligning iron sights or looking through an optic. Visible lasers (red or green) are used in normal lighting conditions; infrared lasers are used with night vision equipment.
Green lasers are significantly more visible than red lasers in daylight conditions — the human eye is most sensitive to green light at approximately 532nm, making green lasers appear 5–50x brighter than equivalent red lasers in the same conditions. For daytime use, green is the practical choice. For night vision use, infrared lasers are standard.
Weapon Light/Laser Combinations
Combination units integrate a weapon light and laser aiming device in a single rail-mounted package, eliminating the need for separate accessories and the associated mounting complexity. These combinations are particularly practical for pistols, where rail space is limited and a single accessory that provides both illumination and aiming assistance is more practical than two separate units.
WARRIORLAND's Crossbow MA2 series provides 800-lumen weapon light capability in combination packages that include platform-specific IWB holsters. The MA2 with SIG P320 Compact/M18 IWB holster combo and the MA2 with Taurus G2C/G3/G3C IWB holster combo provide complete light-equipped carry solutions for specific platforms. The MA2 with Springfield Hellcat Pro holster and MA2 with S&W M&P Shield EZ holster extend the same approach to additional popular carry platforms.
Optics
On rifles, the top Picatinny rail is the primary mounting surface for optics: red dot sights, holographic sights, magnified scopes, and magnifier units. The standardized rail height ensures that optics mounted on Picatinny rails achieve consistent eye relief and cheek weld across different platforms.
On pistols, optics are typically mounted directly to the slide via a dedicated optic cut rather than to a rail — the pistol rail's position below the bore axis makes it unsuitable for optic mounting. Pistol optic cuts (RMR cut, Shield RMS cut, etc.) are a separate mounting system from the Picatinny rail.
Foregrips and Bipods
On rifles, the bottom rail is the primary mounting position for vertical foregrips, angled foregrips, and bipods. These accessories improve stability and control during sustained fire. The Picatinny rail's robust clamping mechanism is essential for foregrips and bipods, which experience significant force during use.
The No-Rail Problem: Solutions for Pistols Without Picatinny Rails
Why Some Pistols Lack Rails
Not all pistols include an accessory rail. Subcompact and micro-compact pistols — designed for maximum concealability — often omit the rail to reduce frame length and overall size. The Glock 43/43X, SIG P365 (standard), and many other popular carry pistols have no rail in their standard configuration.
This creates a challenge for carriers who want weapon light capability on a compact platform: the standard rail-mount approach isn't available.
Trigger Guard and Trigger-Mounted Solutions
For pistols without rails, trigger guard-mounted and trigger-mounted light/laser units provide an alternative. These accessories clamp to the trigger guard rather than a rail, providing a mounting point that doesn't require frame modification.
WARRIORLAND's SLL-105 series provides this solution for the Glock 43/43X platform. The SLL-105 with red laser and SLL-105G with green laser are trigger-mounted 150-lumen light/laser combinations specifically designed for the no-rail Glock 43/43X/48. The SLL-105G with IWB holster combo for Glock 43/43X provides a complete light-equipped carry solution for the most popular subcompact Glock platforms.
Light-Bearing Holsters: The Essential Companion
Why a Standard Holster Won't Work
Mounting a weapon light or laser on a pistol's rail changes the pistol's dimensions significantly — the accessory extends below and forward of the frame, making the pistol incompatible with holsters designed for the bare pistol. A standard holster that fits a Glock 19 without a light will not accommodate a Glock 19 with a TLR-7 or similar weapon light attached.
Light-bearing holsters are designed specifically for pistol-plus-light combinations. They accommodate the accessory's dimensions while maintaining proper retention, trigger guard coverage, and draw characteristics. Using a standard holster with a light-equipped pistol — or removing the light to use a standard holster — defeats the purpose of the weapon light system.
Platform-Specific Fit Matters
Light-bearing holsters are typically designed for specific pistol-plus-light combinations rather than universal fit. A holster designed for a Glock 19 with a TLR-7A will not necessarily fit a Glock 19 with a TLR-1 or a SureFire X300 — the light's dimensions determine the holster's geometry as much as the pistol's dimensions do.
WARRIORLAND's light-bearing OWB holster lineup provides platform-specific solutions for the most popular pistol/light combinations. The Glock 17/19/19X/45 Gen3-5 OWB light-bearing holster fits TLR-7A, TLR-7X, TLR-7 HL-X, TLR-8A, TLR-8X, and compatible lights with optic cut and thumb release. The Glock 17/19/23/32 Gen4-5 OWB light-bearing holster is designed specifically for the Streamlight TLR-1/1S/HL combination.
Practical Mounting Tips: Getting the Most from Your Picatinny Rail
Torque Specifications Matter
Over-tightening rail-mounted accessories can damage both the accessory's mounting foot and the rail itself. Under-tightening allows accessories to shift under recoil. Most quality accessories specify a torque value for their mounting screws — follow these specifications with a torque wrench rather than tightening by feel.
For accessories without specified torque values, a general guideline is firm hand-tight plus a quarter turn for thumb-screw mounts, and 15–25 inch-pounds for cross-bolt mounts on pistol rails. Rifle rails with heavier accessories can tolerate higher torque values.
Verify Zero After Mounting
Any accessory that affects aiming — laser aiming devices, optics — must be zeroed after mounting. Even accessories that appear correctly aligned may be off-axis enough to cause misses at defensive distances. Zero laser aiming devices at your intended engagement distance (typically 10–15 yards for pistol lasers) and verify the zero periodically, especially after any impact or disassembly.
Check Retention Regularly
Rail-mounted accessories can loosen over time due to recoil vibration, particularly on high-volume shooting platforms. Check the tightness of all rail-mounted accessories before each range session and periodically during extended use. A loose weapon light that shifts during a defensive encounter is worse than no weapon light at all.
Consider Accessory Position
On pistol rails, most accessories mount in a fixed position determined by the rail's length and the accessory's mounting foot. On longer rifle rails, position matters: lights and lasers mounted too far forward may be difficult to activate; mounted too far back, they may interfere with the support hand grip. Experiment with position during dry fire before committing to a final mounting location.
Use Thread Locker Appropriately
Blue (medium-strength) thread locker on cross-bolt screws prevents loosening under recoil without making removal impossible. Avoid red (permanent) thread locker on accessories you may need to remove — it can make disassembly extremely difficult without heat. Never use thread locker on lever-lock mechanisms; it can interfere with the cam action.
The Picatinny Rail's Legacy and Future
Why It Endures
The Picatinny rail has been the dominant firearm accessory mounting standard for over 25 years, and it shows no signs of displacement for its primary applications. Its combination of robust mechanical design, precise standardization, and universal adoption creates a network effect: the more accessories are designed for Picatinny rails, the more valuable Picatinny-compatible firearms become, which drives more accessory development.
The rail's mechanical simplicity is also a strength. There are no electronics to fail, no batteries to die, no software to update. A Picatinny rail is a machined metal surface with slots — it will function as long as the metal is intact.
Competition from M-LOK and KeyMod
On rifle handguards, the Picatinny rail faces competition from M-LOK (Magpul's system) and KeyMod (VLTOR's system), both of which use a different slot geometry that allows accessories to mount directly without a separate rail section. These systems are lighter and lower-profile than continuous Picatinny rails, which is why they've largely replaced full-length Picatinny handguards on modern rifles.
However, M-LOK and KeyMod are typically used with short Picatinny rail sections attached where needed — the accessories themselves still mount to Picatinny rails. The top rail of virtually every modern AR-15 remains a continuous Picatinny rail for optic mounting. M-LOK and KeyMod complement rather than replace the Picatinny standard.
The Standard Remains
For pistol accessory mounting, the Picatinny/accessory rail standard remains essentially unchallenged. The rail's dimensions are well-suited to the pistol's compact form factor, and the accessory ecosystem — weapon lights, lasers, light/laser combinations — is mature and deep. New pistol platforms continue to be designed with Picatinny-compatible rails as standard equipment.
Conclusion: The Rail That Built the Modern Tactical Accessory Market
The 1913 Picatinny rail is one of the most consequential standardization decisions in modern firearms history. By establishing precise, universal dimensions for accessory mounting, it created the conditions for a deep, competitive accessory market where innovation in weapon lights, lasers, optics, and other accessories could proceed without platform-specific constraints.
For the practical shooter, understanding the Picatinny rail means understanding why your weapon light fits your pistol, why you need a light-bearing holster when you add a light, and why the accessory you buy today will work on the firearm you buy tomorrow. The standard's universality is its greatest feature — and the reason it has endured for three decades and counting.
Whether you're equipping a full-size duty pistol with an 800-lumen weapon light like the WARRIORLAND Crossbow MA1, building a complete light-equipped carry system with the MA2 combo package, or solving the no-rail problem on a compact carry pistol with the SLL-105 trigger-mounted light/laser — the Picatinny rail standard is the foundation that makes it all work. Know your rail. Choose your accessories accordingly. Build the complete system.
